Name: Sidewalk.DBO.Sidewalks

Display Field: JURISDICTION

Type: Feature Layer

Geometry Type: esriGeometryPolyline

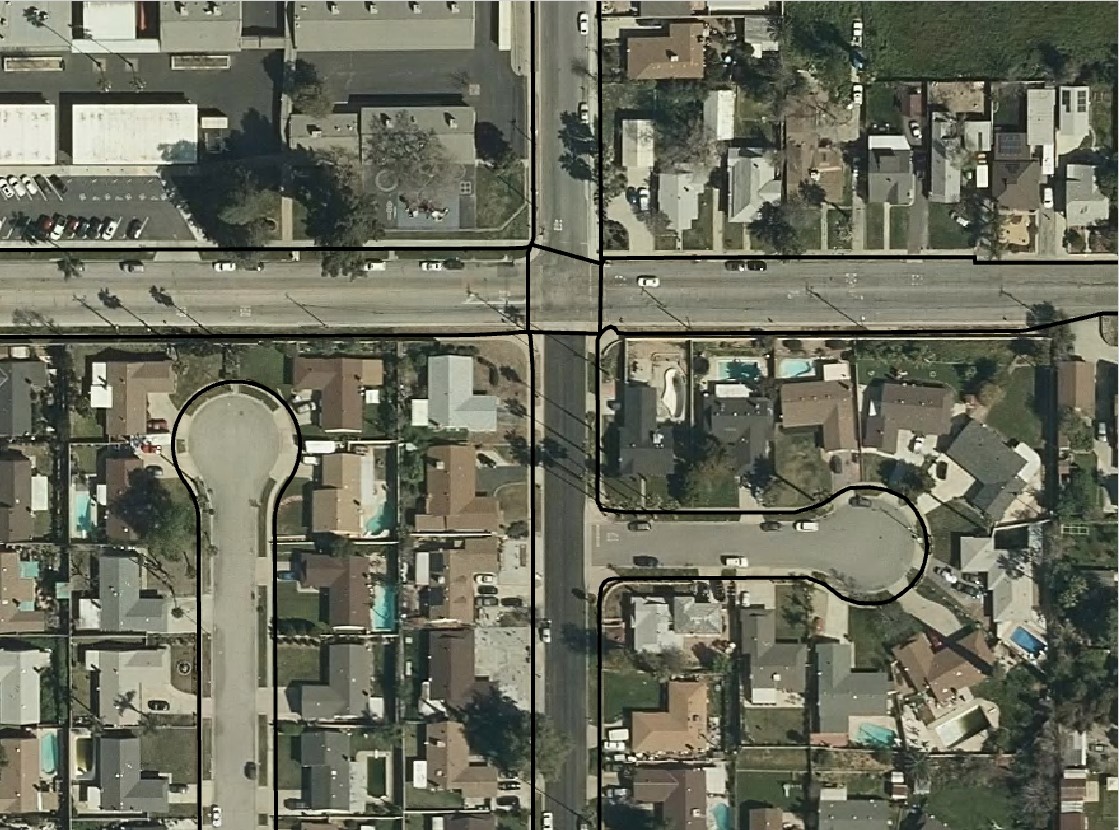

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 7 0;"><SPAN>Line </SPAN><SPAN>feature locating </SPAN><SPAN>the presence of </SPAN><SPAN>sidewalks. </SPAN><SPAN>Sidewalks </SPAN><SPAN>are built environment features that allow </SPAN><SPAN>pedestrian movement, usually under non-motorized power or limited power, along a paved </SPAN><SPAN>plane </SPAN><SPAN>resting higher than </SPAN><SPAN>the street plane. The dataset identifies </SPAN><SPAN>sidewalks and crosswalk types </SPAN><SPAN>based on those defined by </SPAN><SPAN><SPAN>engineering design standards </SPAN></SPAN><SPAN><SPAN>as of April 2019</SPAN></SPAN><SPAN>. The dataset extent covers all 25 jurisdictions in the County, </SPAN><SPAN>using a methodology of drawing lines </SPAN><SPAN>as defined during the Sidewalk Inventory Plan. For further details regarding the methodology, please refer to those plan documents. </SPAN></P><P STYLE="margin:0 0 7 0;"><SPAN>The dataset consists of </SPAN><SPAN>10</SPAN><SPAN> attributes, including:</SPAN></P><UL><LI><P><SPAN>'</SPAN><SPAN>Featuer</SPAN><SPAN>Type': Defines the </SPAN><SPAN>presence of sidewalk or </SPAN><SPAN>type of </SPAN><SPAN>crosswalk</SPAN><SPAN>.</SPAN></P></LI><LI><P><SPAN>'</SPAN><SPAN>WidthValue</SPAN><SPAN>': </SPAN><SPAN>Approximate measure to the nearest whole foot the width of sidewalk or crosswalk.</SPAN></P></LI><LI><P><SPAN>'Material': Defines the type of paving or non-paving material that makes up the sidewalk.</SPAN></P></LI><LI><P><SPAN>'StreetName': </SPAN><SPAN>Identifies the street immediately </SPAN><SPAN><SPAN>adjacent</SPAN></SPAN><SPAN>to the feature.</SPAN></P></LI></UL><P STYLE="margin:0 0 7 0;"><SPAN>The attributes also contains a 'Notes' field for each record for additional observations on each record to be included should there be more notes. The majority if not all of these entries will most likely be 'null'.</SPAN></P></DIV></DIV></DIV>

Copyright Text: SBCTA, David Evans and Associates

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6624962.6892579645
YMin: 1794954.4927168041
XMax: 7729260.9947645515
YMax: 2481632.849016145
Spatial Reference: 3498  (3498)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSLSSolid
Color: [151, 73, 160, 255]
Width: 1
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• JURISDICTION ( type: esriFieldTypeString, alias: JURISDICTION, length: 50 , Coded Values: [0: Adelanto] , [1: Apple Valley] , [10: Chino Hills] , ...61 more... )
• FEATURETYPE ( type: esriFieldTypeString, alias: FEATURETYPE, length: 50 , Coded Values: [1: Sidewalk] , [3: No Sidewalk] , [4: No Sidewalk Needed] , ...2 more... )
• WIDTHVALUE ( type: esriFieldTypeSmallInteger, alias: WIDTHVALUE )
• WIDTHCAT ( type: esriFieldTypeString, alias: WIDTHCAT, length: 50 , Coded Values: [1: Less than 4'] , [2: 4' - 8'] , [3: 8' or greater] , ...1 more... )
• MATERIAL ( type: esriFieldTypeString, alias: MATERIAL, length: 50 , Coded Values: [1: Concrete] , [2: Bare Ground] , [3: Asphalt Cement] , ...3 more... )
• SOURCEGEO ( type: esriFieldTypeString, alias: SOURCEGEO, length: 50 , Coded Values: [0: SBCTA Aerial] , [1: Jurisdiction Aerial] , [2: Google Street View] , ...3 more... )
• SOURCEGEODATE ( type: esriFieldTypeInteger, alias: SOURCEGEODATE , Coded Values: [0: 2019] , [1: 2018] , [2: 2017] , ...8 more... )
• SOURCEATTR ( type: esriFieldTypeString, alias: SOURCEATTR, length: 50 , Coded Values: [0: DEA] , [1: SBCTA] , [2: Jurisdiction] )
• GlobalID ( type: esriFieldTypeGlobalID, alias: GlobalID, length: 38 )
• LengthMiles ( type: esriFieldTypeDouble, alias: LengthMiles )
• OtherNotes ( type: esriFieldTypeString, alias: OtherNotes, length: 255 )
• Street ( type: esriFieldTypeString, alias: Street, length: 100 )
• Zone ( type: esriFieldTypeSmallInteger, alias: Zone )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates

  Iteminfo   Thumbnail   Metadata
