Name: sbgis.DBO.Pedestrian_Buffers

Display Field: BUFFERTYPE

Type: Feature Layer

Geometry Type: esriGeometryPolygon

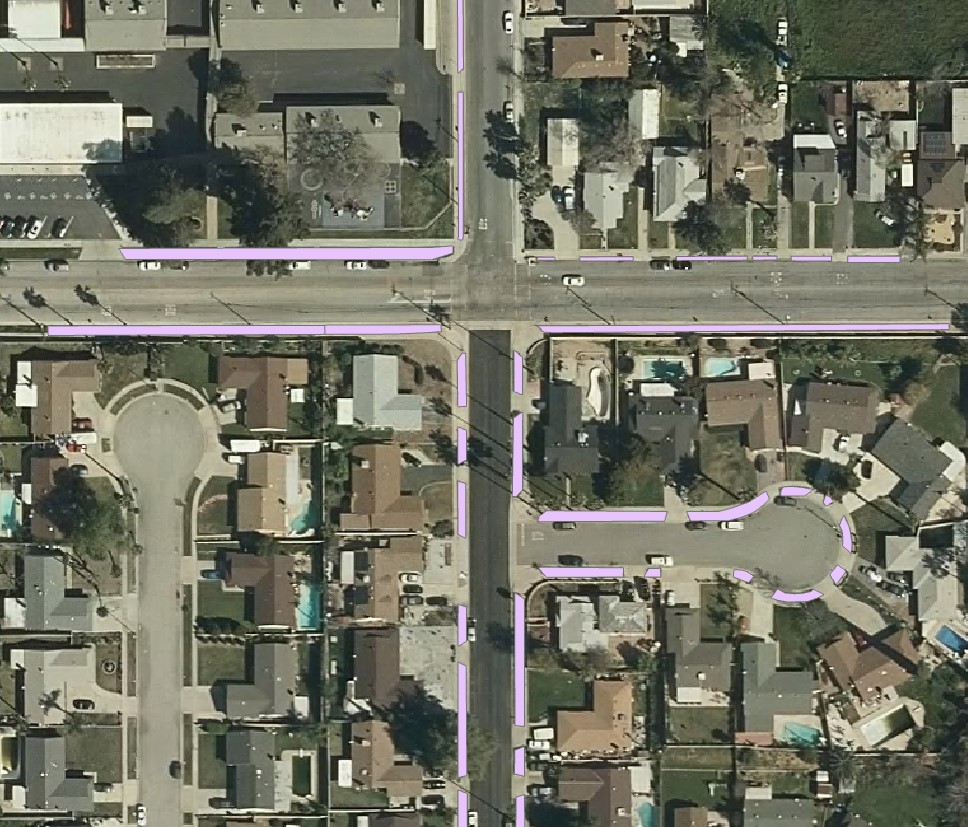

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 7 0;"><SPAN>Area</SPAN><SPAN>features locating </SPAN><SPAN>pedestrian buffers</SPAN><SPAN>. </SPAN><SPAN>Pedestrian buffers </SPAN><SPAN>are built environment features that allow </SPAN><SPAN>a physical separation of </SPAN><SPAN>the sidewalk plane </SPAN><SPAN>from </SPAN><SPAN>the street plane.</SPAN><SPAN>This separation is usually done by placing a built feature barrier or having landscaping that adds at least distance between the sidewalk and street. The curb is not considered part of a </SPAN><SPAN><SPAN>pedestrian </SPAN></SPAN><SPAN>buffer.</SPAN><SPAN>The dataset identifies </SPAN><SPAN>the location of buffers </SPAN><SPAN>based on those defined by </SPAN><SPAN><SPAN>engineering </SPAN></SPAN><SPAN>design standards </SPAN><SPAN>as of April 2019. The dataset extent covers all 25 jurisdictions in the County, though each jurisdiction is limited to having ramps identified with a specific 1/2 mile or 1/4 mile Euclidian radius of prominent pedestrian sites as defined during the Sidewalk Inventory Plan. For further details regarding the methodology</SPAN><SPAN>and typologies used to define buffer types</SPAN><SPAN>, please refer to those plan documents. </SPAN></P><P STYLE="margin:0 0 7 0;"><SPAN>The dataset consists of </SPAN><SPAN>7</SPAN><SPAN>attributes, including:</SPAN></P><UL STYLE="margin:0 0 0 0;padding:0 0 0 0;"><LI><P STYLE="margin:0 0 7 0;"><SPAN>'</SPAN><SPAN>Buffer</SPAN><SPAN>Type': Defines the type of </SPAN><SPAN>buffer</SPAN><SPAN>.</SPAN></P></LI><LI><P STYLE="margin:0 0 7 0;"><SPAN>'</SPAN><SPAN>BufferWidth</SPAN><SPAN>': </SPAN><SPAN>The approximate measure to the nearest whole foot of the buffer between the sidewalk to the street</SPAN><SPAN>.</SPAN></P></LI></UL><P STYLE="margin:0 0 7 0;"><SPAN>The attributes also contains a 'Notes' field for each record for additional observations on each record to be included should there be more notes. The majority if not all of these entries will most likely be 'null'.</SPAN></P></DIV></DIV></DIV>

Copyright Text: SBCTA, David Evans and Associates

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6637074.4106276445
YMin: 1813994.2878257257
XMax: 7581426.473472676
YMax: 2149756.889904861
Spatial Reference: 102645  (2229)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSFSSolid
Color: [204, 217, 252, 255]
Outline:
Style: esriSLSSolid
Color: [110, 110, 110, 255]
Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• BUFFERTYPE ( type: esriFieldTypeString, alias: BUFFERTYPE, length: 100 , Coded Values: [0: No Buffer] , [1: Solid Surface] , [2: On Street Parking] , ...7 more... )
• BUFFERWIDTH ( type: esriFieldTypeSmallInteger, alias: BUFFERWIDTH )
• JURISDICTION ( type: esriFieldTypeString, alias: JURISDICTION, length: 50 , Coded Values: [0: Adelanto] , [1: Apple Valley] , [10: Chino Hills] , ...61 more... )
• SOURCEGEO ( type: esriFieldTypeString, alias: SOURCEGEO, length: 50 , Coded Values: [0: SBCTA Aerial] , [1: Jurisdiction Aerial] , [2: Google Street View] , ...3 more... )
• SOURCEGEODATE ( type: esriFieldTypeInteger, alias: SOURCEGEODATE , Coded Values: [0: 2019] , [1: 2018] , [2: 2017] , ...8 more... )
• SOURCEATTR ( type: esriFieldTypeString, alias: SOURCEATTR, length: 50 , Coded Values: [0: DEA] , [1: SBCTA] , [2: Jurisdiction] )
• NOTES ( type: esriFieldTypeString, alias: NOTES, length: 250 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )
• Shape.STArea() ( type: esriFieldTypeDouble, alias: Shape.STArea() )
• Shape.STLength() ( type: esriFieldTypeDouble, alias: Shape.STLength() )

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates
