Name: sbgis.DBO.Curb_Ramps

Display Field: CURBACCESSTYPE

Type: Feature Layer

Geometry Type: esriGeometryPoint

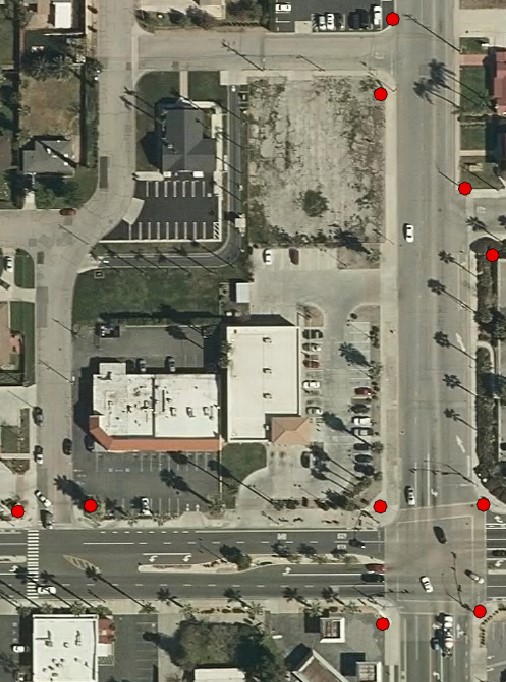

Description: <DIV STYLE="text-align:Left;"><DIV><DIV><P STYLE="margin:0 0 7 0;"><SPAN>Point features locating curb ramps on sidewalks. Curb ramps are built environment features that allow the sidewalk plane to connect with the street plane by means of a ramp over a limited distance. The dataset identifies ramp types based on those defined by the US Access Board as of April 2019, whose guidance is directed by ADA requirements to ensure that public infrastructure is designed so people of all abilities can physically access places within the parameters of the law. The dataset extent covers all 25 jurisdictions in the County, though each jurisdiction is limited to having ramps identified with a specific 1/2 mile or 1/4 mile Euclidian radius of prominent pedestrian sites as defined during the Sidewalk Inventory Plan. For further details regarding the methodology, please refer to those plan documents. </SPAN></P><P STYLE="margin:0 0 7 0;"><SPAN>The dataset consists of 6 attributes, including:</SPAN></P><UL><LI><P><SPAN>'CurbAccessType': Defines the type of crub ramp.</SPAN></P></LI><LI><P><SPAN>'DetectableWarning': Identifies in binary terms if the ramp also comes with additional markings as per ADA guidance.</SPAN></P></LI></UL><P STYLE="margin:0 0 7 0;"><SPAN>The attributes also contains a 'Notes' field for each record for additional observations on each record to be included should there be more notes. The majority if not all of these entries will most likely be 'null'.</SPAN></P></DIV></DIV></DIV>

Copyright Text: SBCTA, David Evans Associates

Default Visibility: false

MaxRecordCount: 2000

Supported Query Formats: JSON, geoJSON, PBF

Min Scale: 0

Max Scale: 0

Supports Advanced Queries: true

Supports Statistics: true

Has Labels: false

Can Modify Layer: true

Can Scale Symbols: false

Use Standardized Queries: true

Supports Datum Transformation: true

Extent:

XMin: 6637280.202007559
YMin: 1814499.306620177
XMax: 7581430.875445672
YMax: 2150441.6623177524
Spatial Reference: 102645  (2229)

Drawing Info:

Renderer:
Simple Renderer:
Symbol:
Style: esriSMSCircle
Color: [77, 165, 113, 255]
Size: 4.0
Angle: 0.0
XOffset: 0
YOffset: 0
Outline:
[0, 0, 0, 255] Width: 0
Label: N/A
Description: N/A
Transparency: 0
Labeling Info:

Advanced Query Capabilities:

Supports Statistics: true
Supports OrderBy: true
Supports Distinct: true
Supports Pagination: true
Supports TrueCurve: true
Supports Returning Query Extent: true
Supports Query With Distance: true
Supports Sql Expression: true
Supports Query With ResultType: false
Supports Returning Geometry Centroid: false

HasZ: false

HasM: false

Has Attachments: false

HTML Popup Type: esriServerHTMLPopupTypeAsHTMLText

Type ID Field: null

Fields:

• OBJECTID ( type: esriFieldTypeOID, alias: OBJECTID )
• CURBACCESSTYPE ( type: esriFieldTypeString, alias: CURBACCESSTYPE, length: 100 , Coded Values: [0: Ramp Standard] , [1: Ramp Built Up] , [2: Ramp Parallel] , ...3 more... )
• DETECTABLEWARNING ( type: esriFieldTypeString, alias: DETECTABLEWARNING, length: 50 , Coded Values: [0: No] , [1: Yes] , [2: Unknown] )
• JURISDICTION ( type: esriFieldTypeString, alias: JURISDICTION, length: 50 , Coded Values: [0: Adelanto] , [1: Apple Valley] , [10: Chino Hills] , ...61 more... )
• SOURCEGEO ( type: esriFieldTypeString, alias: SOURCEGEO, length: 50 , Coded Values: [0: SBCTA Aerial] , [1: Jurisdiction Aerial] , [2: Google Street View] , ...3 more... )
• SOURCEGEODATE ( type: esriFieldTypeInteger, alias: SOURCEGEODATE , Coded Values: [0: 2019] , [1: 2018] , [2: 2017] , ...8 more... )
• SOURCEATTR ( type: esriFieldTypeString, alias: SOURCEATTR, length: 50 , Coded Values: [0: DEA] , [1: SBCTA] , [2: Jurisdiction] )
• NOTES ( type: esriFieldTypeString, alias: NOTES, length: 250 )
• Shape ( type: esriFieldTypeGeometry, alias: Shape )

Supported Operations:   Query   Query Attachments   Generate Renderer   Return Updates
